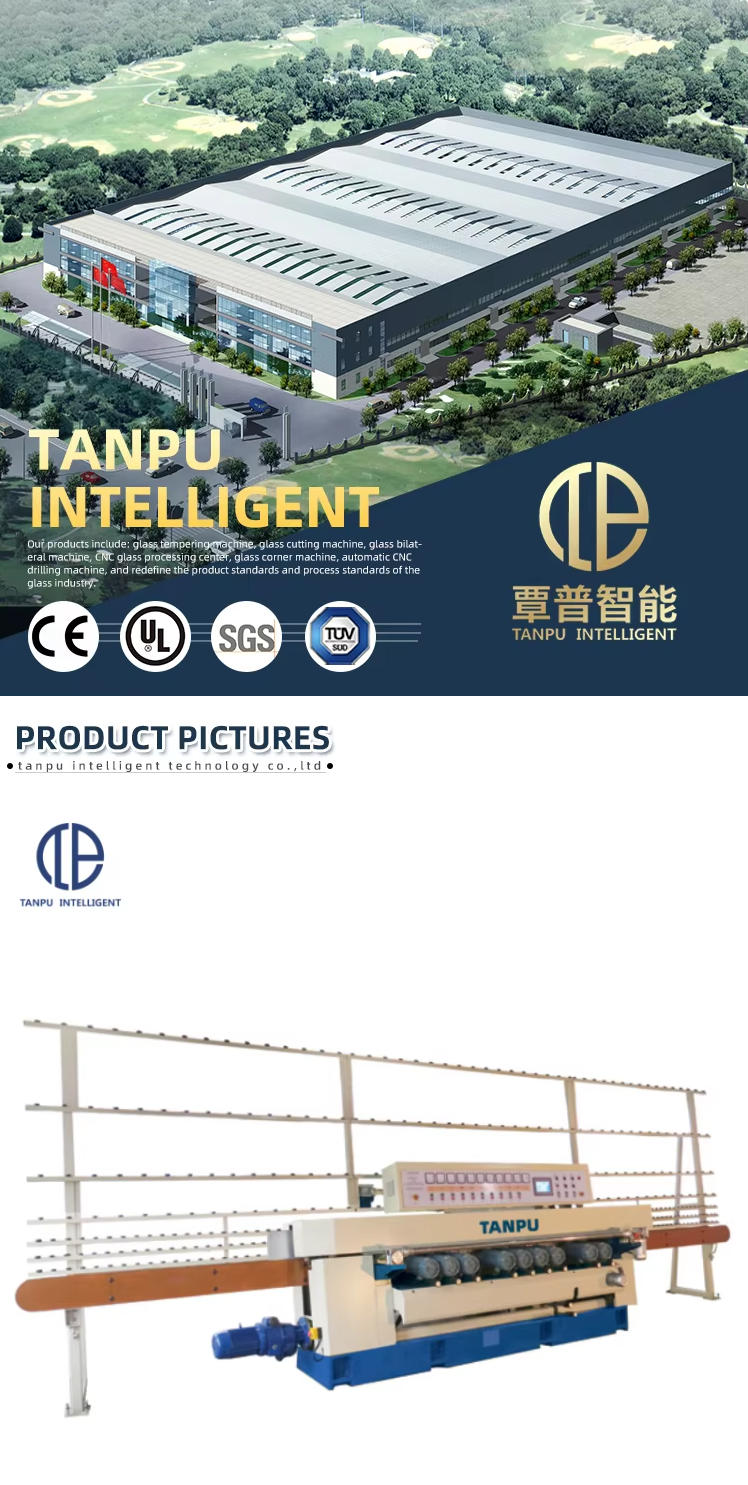

TPX361S Glass Straight Line Beveling Machine

●TPX361S Glass Straight Line Beveling Machine with 10 motors, the processing speed is adjustable with Speed reducer, which offers a wide range of speed selection;
● It abopts advanced front beam lifting system,the lifting screw in  pure copper is control by motor,synchronize with 45°quenched dovetail carriage,to ensure high precision.
●Using advanced PLC controlling system to make it easy operated and with high automunization and strong function.
●Coarse grinding,fine grinding and polishing can be completed in one time,ensuring the accuracy and polishing brightness achieving to the mirror effect.
●The base,beam,swing frame,upright column and Grinding head are of casting materials(annealed to prevent deformation).They have extreme resistance to abrasion and deformation,as well as the best  shock absorbing properties.
●The beveling grinding head motor is from the international brand:ABB,Electric is from Schneider,and it also has Aluminum alloy scaffolding line and Synchronous belt transmission.
●It is the best glass grinding equipment for processing glass mosaic,craft glass,decoration and furniture glass,doors and windows,bathroom mirror and cosmetic mirror,it is a machine with multi-use.
●PLC and touch screen is optionally available,which can automatic control the thickness,residual thickness and bevel width.
